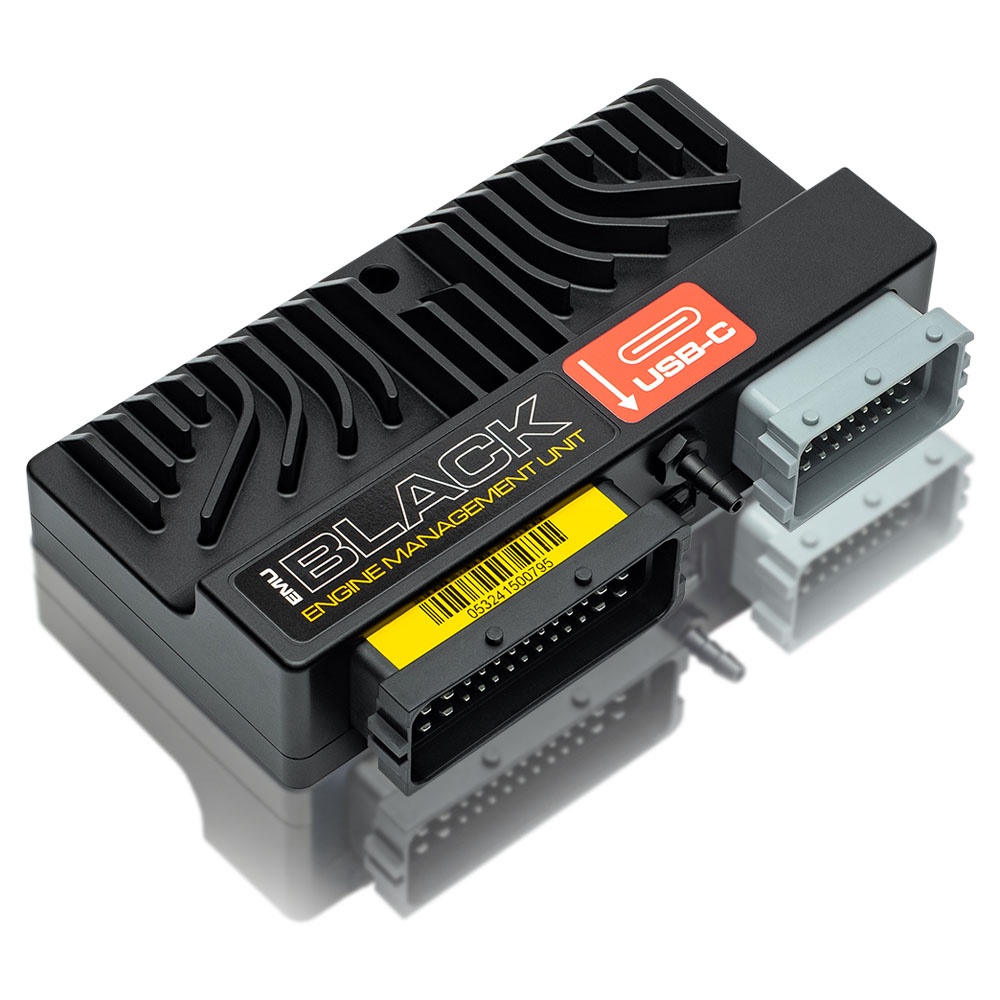

ECUMaster EMU Black – Standalone Engine Management Unit

Product information

The ECUMaster EMU Black is a high-performance standalone ECU designed for demanding street and motorsport applications. With advanced control strategies and extensive tuning options, it offers precise management of fuel, ignition, boost, and additional engine parameters – ensuring maximum performance and reliability under all conditions.

Built on modern hardware with powerful processing capability, the EMU Black supports features such as sequential fuel and ignition control, wideband lambda input, onboard data logging, and advanced boost control. It is fully configurable through the ECUMaster software, allowing tuners to optimize the setup for naturally aspirated, turbocharged, or supercharged engines.

EMU Black targets race cars, road cars, motorcycles, boats, and stationary engine applications.

The ECUMaster EMU Black is capable of managing fuel, ignition, and auxiliary systems on engines ranging from 1 to 12 cylinders, including setups with Drive-By-Wire throttles and Variable Valve Timing (VVT).

It can directly control up to 6 passive coils or 12 smart coils without the need for external amplifiers or power modules. Advanced drive-by-wire strategies offer precise throttle management combined with robust safety checks for maximum reliability.

With free firmware updates and great customer support, the EMU Black continues to evolve, adding new strategies, trigger pattern support, and CAN data options — ensuring your ECU stays up to date with the latest features.

More information, technical drwaings, manuals and software can be downloaded here

GENERAL
Temperature range	AECQ100 GRADE2 (-40 to +105˚C)
Reverse battery protection	Yes, internal
Operating voltage	6-22V, immunity to transients according to ISO 7637
Enclosure	IP 60, custom CNC machined aluminium

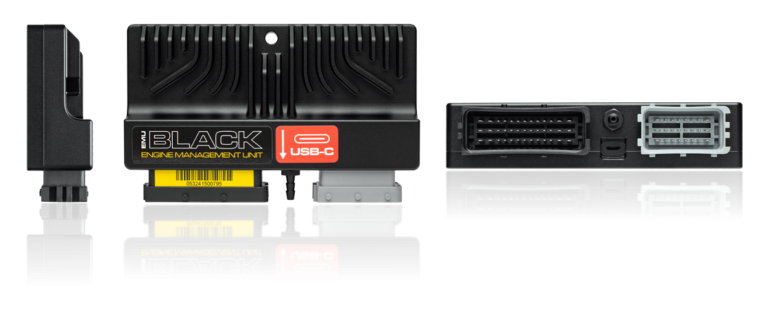

Size (mm) and weight(g)	150x72x31, 390

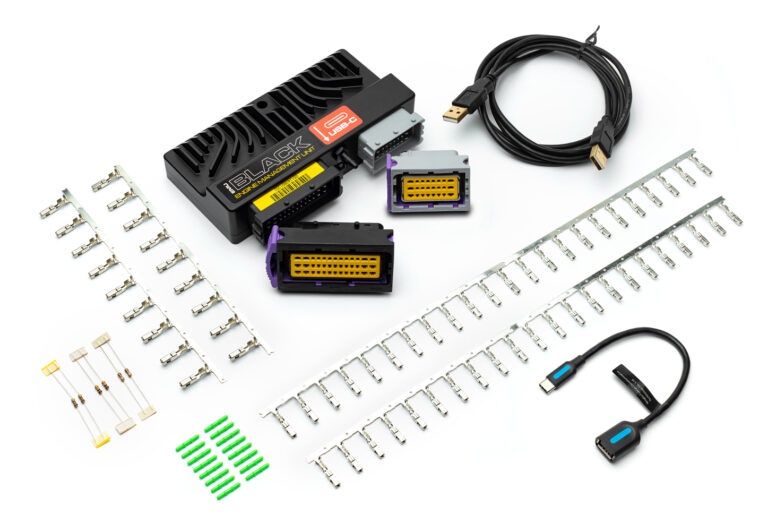

Connectors	1 x 24, 1 x 39 FCI Automotive connector
PC communication	USB (with PC client software)
OUTPUTS
Injector outputs	6 protected outputs 5A, low side
Ignition outputs	6 outputs 7A(15A peak) (passive & active coils supported)
Aux outputs	6 protected outputs 5A, low side
Other outputs	Full bridge up to 7A, can be used as separate outputs or 2 H-Bridges
WBO heater	Protected low side up to 5A
Communication	Serial, CAN BUS 2.0B
INPUTS
Analog inputs	9 inputs, resolution 10Bits, 0-5V (protected)
EGT inputs	2 for K-Type thermocouple
Knock sensor	2 inputs
Oxygen sensor	LSU 4.2, LSU 4.9 or Narrow band
Trigger inputs	3 (primary, 2 cams) Hall/ VR software selectable
VSS	1 (Hall / VR)
Flex Fuel Sensor	Yes
Switch inputs	3 inputs, switched to ground
SENSORS
Temperature sensors	IAT, CLT, Oil temperature, AC evap temperature
Pressure sensor	MAP, Oil pressure, Fuel pressure (user defined characteristic), AC pressure sensor, Back pressure
Oxygen sensor	LSU 4.2 or 4.9 (built in controller), Narrow band, external WBO controllers
Speed	Vehicle speed sensor (VR/HALL), Gear sensor (sensor, calculated)
FUELING
Injectors	Up to 8 HiZ injectors (sequential)
Injection angle control	0-720 deg, start or end of injections
Battery compensation	User defined, wizard for popular injectors
Fueling strategies	VE based speed density, Alpha N
Air charge temp.	Based on IAT and CLT
VE table	2 tables 16×20 (Load x RPM), resolution of 0.1%
Individual cylinder trim	Yes
Staged injection	Yes
Additional correction	Oxygen sensor corrections, EGT correction (per cylinder), BARO, TPS vs MAP, TPS vs RPM, Warmup, Nitrous, LC, ALS, ASE, Fuel pressure, Knock sensor
Lambda based real time correction	Using Lambda target table
Acc. / Deceleration enrichment	Yes
IGNITION
Ignition outputs	6 for passive and active coils (software selectable)
Supported triggers	N-1, N-2, N-3, N+1, Multitooth, Subaru triggers, Nissan trigger, Lotus Elise, Audi trigger, Renault Clio Wiliams / Alpine, Colt 1.5CZ, Wrangler
Ignition angle table	2 tables 16×20 (Load x RPM), resolution of 0.5 Deg
Per cylinder trim	Yes
Dwell time battery compensation	Used defined, wizard for popular coils
Odd fire compatibility	Application dependent
Additional correction	CLT, IAT, TPS vs MAP, Nitrous, Idle, Knock sensor, LC, Pit limiter, ALS, Flat shift, Timers, Acc. enrichment
KNOCK SENSING
Channels	2
Resonant frequency range	1-20kHz, 3rd order AAF
Sampling	Ignition event driven, knock window
Actions	Ignition retard, fuel enrichment, dashboard indication
IDLE CONTROL
Control type	PWM solenoids (2,3 wires), drive by wire, stepper motors (bi and unipolar), ignition cut, fuel cut
Control strategy	Open / Close loop , ignition angle control
VE correction	Yes, for Alpha-N
Corrections	AC clutch, coolant fan, analog input
BOOST CONTROL
Boost ref and target tables	2 sets 10×10 (TPS vs RPM)
Control strategies	Open / Closed loop (PID based)
Corrections	Gear, VSS, IAT, EGT
DRIVE BY WIRE
Control strategy	Advanced 3D PID + static friction compensation
Supported throttles	All with DC motor and current requirement lower than 6.5A Wizard for 28 popular electronic throttles
PPS to throttle position characteristic	3D table
BLIP support	Yes
ALS support	Yes
TRACTION CONTROL
TC strategy	Delta RPM, gear compensation
Torque reduction	Spark cut using 3D table (16×20)
Sensitivity control	10 position rotary switch
VARIABLE VALVE TIMING
Supported systems	VVTi, MiVec, VANOS, Double Vanos
Number of camshafts	2
Control strategy	PID based closed loop, CAM angle target tables 12×12
FLEX FUEL
Ethanol content measurement	Yes
Fuel temperature measurement	Yes
Tables blending	VE, IGN, Lambda/AFR, Boost, Cranking fuel, ASE, Warmup
Fuel temperature PW correction	Yes
SPORT
ALS	2 independent ALS setting, DBW support
Shift light	Per gear shift light
Launch control	Yes
Gear cut	Yes (Open loop), DBW blip supported Source: Switch, load cell, CAN
Pit limiter	Yes
Rolling anti lag	Yes
ENGINE PROTECTION
Fail safe values for critical sensors	Yes
Dashboard indication of failures	Yes, user defined
Over temperature engine protection	Yes (oil and coolant), user defined, RPM limit
Low oil pressure protection	Yes, user defined, shut off
Fuel pressure protection	Yes, fuel dose compensation, RPM limit, engine shut off
High exhaust temperature	Alarm, per cylinder fuel trim, boost limit
CAN BUS
CAN standard	2.0B 125, 250, 500, 1000 kbps
Supported CAN Dashes	ECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEM
Supported OEM CAN streams	BMW E46, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, Mini Cooper R53, Fiat 500, Renault Clio, Lotus, Ford Fiesta, Ford ST, EVO X (AYC support)
OTHER
Unused injection outputs can be used as AUX output	Yes
Output functions	Fuel pump, coolant fan, parametric outputs, nitrous control, PWM 3D table output, AC clutch, main relay, speedometer, tachometer
Password protection	Yes, 2 levels
Timers	Fuel, Ignition, Boost, timers controlled by virtual outputs
Serial dashboard support	AIM, RaceTechnology
Autotune	Yes
Built in trigger scope	Yes
Logging	Real time logging to PC computer, logging on external loggers (serial / CAN)
