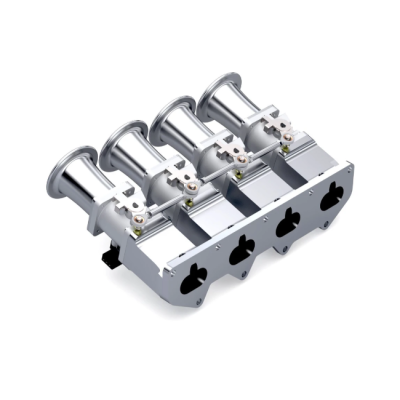

Individual Throttle Body Kit 1.8 NB 98-05 Mx-5/Miata

Product information

Introducing the completely redesigned individual throttlebodies for both the 1.8 and 1.6 NA and NB Miatas!

After a few years of offering the 4A-GE>Miata adapters and complete 4A-GE kits it's finally time for a all new Hummelink-modifications individual throttlebody kit

ITB's are a must have when building a naturally aspirated machine. The stock intake manifold gets replaced for a set of individual throttlebodies, giving each cylinder their own throttlebody, resulting in the best flow possible.
Moving the throttle this close to the head results in instant throttle reponse.
ITB's are knows for amazing intake sound, this kit is no exception!

This kit is designed to be as plug and play as possible, and focussed on maximum naturally aspirated power gains, aswell as reliability and quality.

After loads of flow calculations and confirming dyno test with various diameters/lenghts we've designed the optimal Miata ITB kit.
The runners on these ITB's are specifically made for the BP engines, resulting in optimal 'all motor' performance.

The kit features:

• Fully billet adapter manifold, velocity stacks and throttle cable wheel.
• Cast aluminum throttlebodies, precision machined bore/butterfly valves
• Vertical throttlesbodies, allowing for much more enginebay clearance.
• Original TPS location, including a adapter harness. Allowing for a plug and play conversion without cutting wiring.
• The kit comes with 80mm stacks and optional 50mm spacers. The 80mm stacks will fit any ABS and RHD model, with the additional spacers you're at the optimal runner lenght for maximum torque.
• Improved port angle and velocity compared to the 4A-GE kits.
• 10° steeper angle for the 1.8 kit, to improve both looks and flow over the previous 1.8 kit.
• Fully adjustable butterflies and idle screws for optimal throttlebody synchronizing.
• Mechanical synchronized out of the box.
• 1/8npt vacuum ports

Product details

1x fully assembled ITB setup
- Billet manifold
- Billet 80mm velocity stacks
- 45mm throttlebodies
- 3-pin TPS and adapter harness
- Billet throttle cable wheel
- Intake gasket

CNC machined out of high quality 6082 Aluminum, which is known for being both strong and very corrosion resistant.

In case of a engine swap; please leave a comment at checkout. These kits use a adapter harness for the TPS, and intake gaskets vary for the NA and NB engines. Let us know which engine and chassis you're using so we can provide you with the right parts!

Our 1.8 ITB kits fit all NA and NB 1.8 miata engines due to the dual flange design.

This is our 1.8 kit, our 1.6 kit can be found here

More information about our ITB kits:

Additional parts required for a ITB conversion

---

Product information

This vacuum block is a easy solution for collecting vacuum from all runners on a ITB setup.

Ideal for getting a reliable vacuum for your brakebooster or fuel pressure regulator. It also makes setting up a idle control valve on your ITB's possible.

Product information

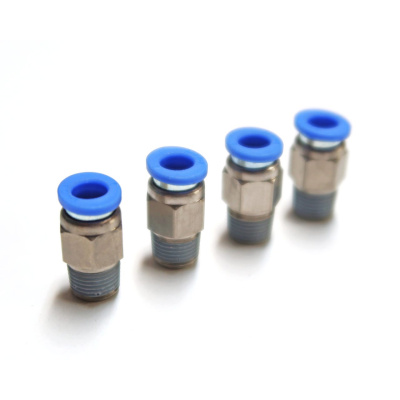

These fittings allow you to adapt a 6mm FESTO line to a 1/8NPT fitting. Same idea as the 4mm barb fittings, but with a quick connect fitting. Ideal for easy removal and installation. Perfect to connect the vacuum ports on your ITB adapter to your brakebooster or MAP signal.

Product information

We offer a few variations of ITB filters. Most popular is the Pipercross PX-600. We offer a both a box and dome shaped variant. A other option is a set of sockfilters.

This PX600 is the ideal filter solution for a ITB kit. Easily mounted with a pre-drilled baseplate for the Hummelink-modifications ITB kit.

The filter is a lifetime filter and can be washed and reused.

These filters are a must for a reliable ITB setup.
